VRH (Variable Ride Height) system for Onewheel GT - NEW! PREORDER

Land-Surf, LLC.

Introducing the easiest and quickest way to adjust the ride height on your Onewheel GT stock rails, the Variable Ride Height system by Land-Surf!

VRH parts are being CNC milled now, and your order is a PREORDER.  Finished units will ship early-December.

Here's an intro video on Youtube

With other axle carriers, you can choose one or two positions for a change in height - which isn't all that much adjustability. Plus, to change ride height, you need to spend time in your shop removing a bunch of screws and even the entire wheel!

In less than a minute you can change your ride height to any one of 7 positions, with each position moving the board up or down by around 7mm.  The axle is never fully disconnected from the board, so changes are easy and fast.  The system drops the Onewheel Rails up to 1.25" down, and about .25" up from stock).

Riding to a trail via the streets?  Drop your ride height for the smooth pavement and then quickly raise it to stock or one step higher for the trails!

With the VRH system can you precisely dial in any ride height for the terrain while out on a ride, and changing to a new setting takes less than one minute and only 2 screws!

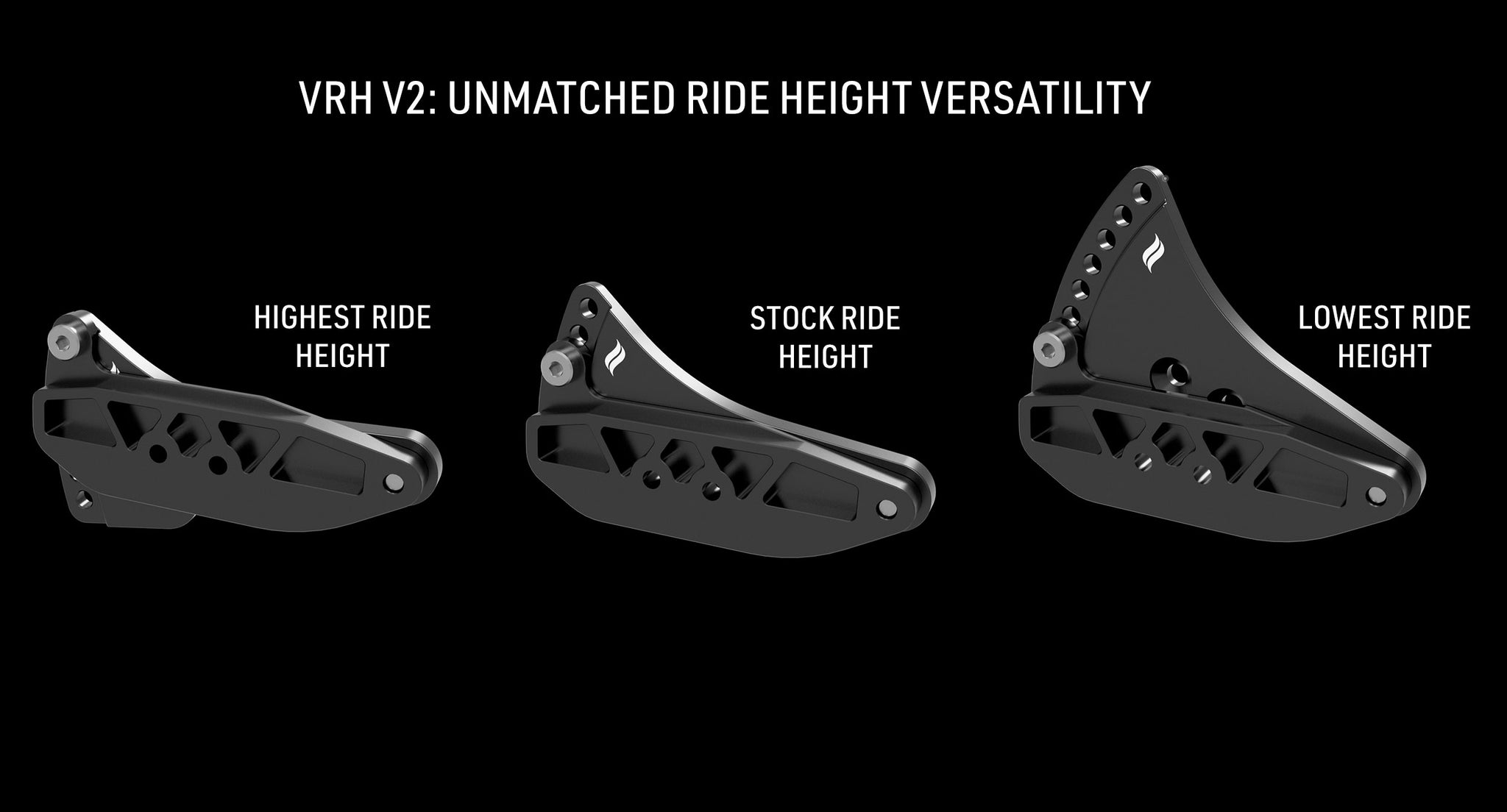

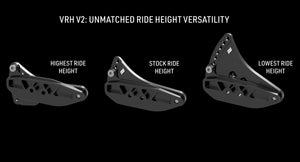

The second hole from the top corresponds to stock ride height. From there you can go up slightly (the top hole), or progressively lower the board over 5 stops (the lower holes) for a full drop of about 1.25" from the stock height at the last setting!

Made from 7075 T6 aluminum for super strength, and then anodized, the VRH not only functions like no other axle carrier, but also looks good doing it!

A set of 4 custom-made, stainless-steel high strength screws attach the VRH inner brackets directly to the frame, and installation takes only 10-15 minutes. For ease of use, ALL of the screws on the VRH system are M8 threaded and use the same size 5mm hex drive.

Meant to work with stock Onewheel GT rails, but may work on other rails that can use the stock axle carriers.

IMPORTANT NOTES:  Fenders and fender deletes will need to be trimmed or Dremmeled (sanded) in order to clear the swingarm and adjuster bolts. We just cut the fender deletes at an angle on a miter saw (and we did a hack job there, yours could be better) and put them on.  You also can't use a Maghandle with the VHR brackets.  Rim protectors may or may not work, depending on how thick they are.

VRH is compatible with our Stone Cold Chillers - and they fit well together!

Each order includes:

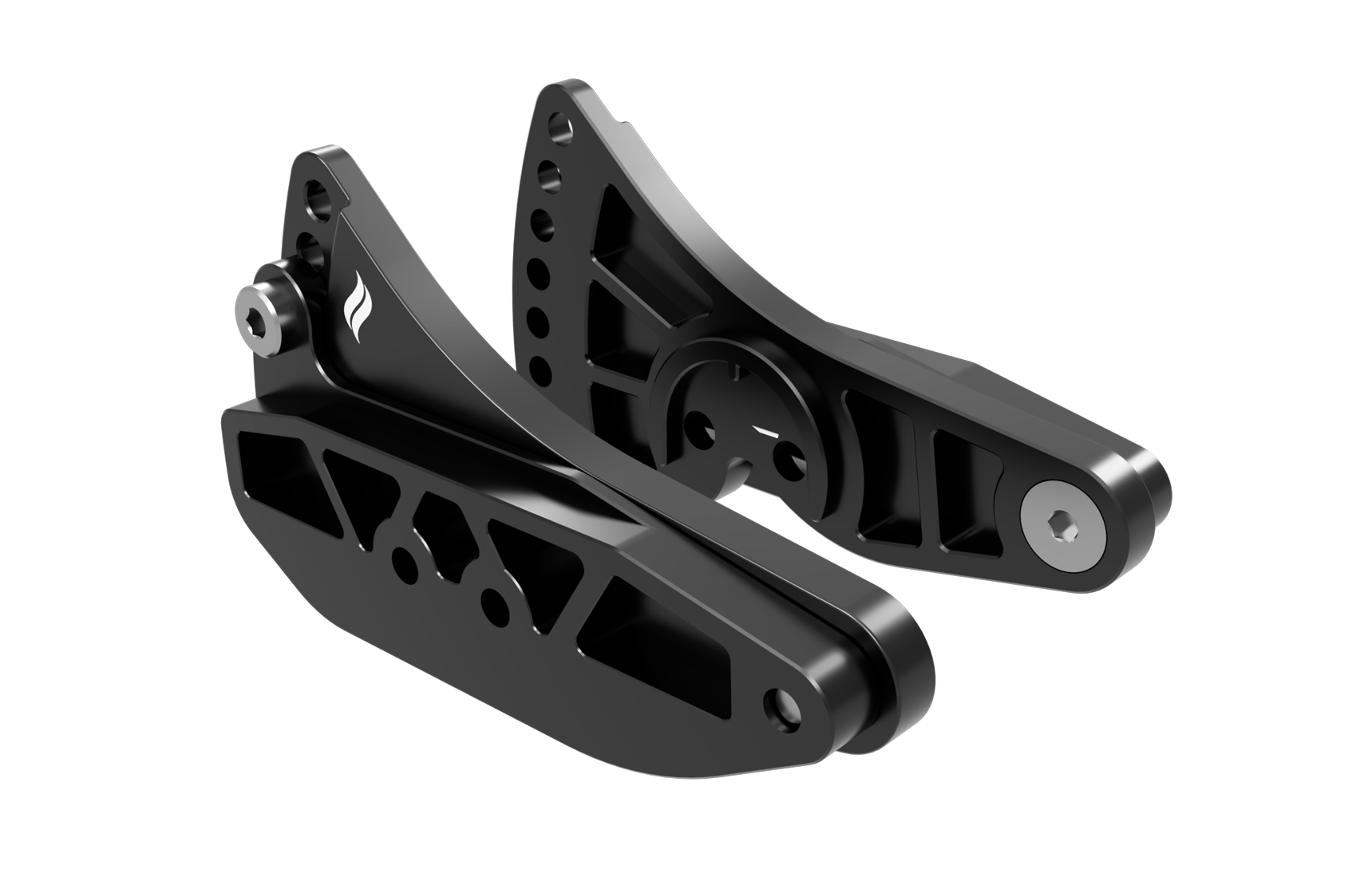

  • Left & Right VRH Rail Bracket and Swingarm
  • 4 custom stainless steelM8  mounting screws
  • 2 ride height adjuster M8 screws
  • 6 M8 countersunk screws
  • 5mm L-key



Versions for XR and Pint are in the works!  Patent Pending.
